Omnichannel Contact Center Architecture
The Omnichannel Contact Center Architecture defines the operational hub for managing customer interactions across voice and digital communication channels. It centralizes routing, agent workflows, automation, knowledge systems, case management, quality assurance, workforce planning, and CRM integration into one support environment.
Architecture Overview
As organizations expand support channels, managing interactions across voice, messaging, and chat becomes increasingly complex. Fragmented channel systems lead to inconsistent agent workflows, long queue times, limited case visibility, manual quality monitoring, and weak operational forecasting.
This architecture solves those problems by routing all channels through a shared platform, integrating CRM systems, applying operational governance, and enabling automation across the support lifecycle.

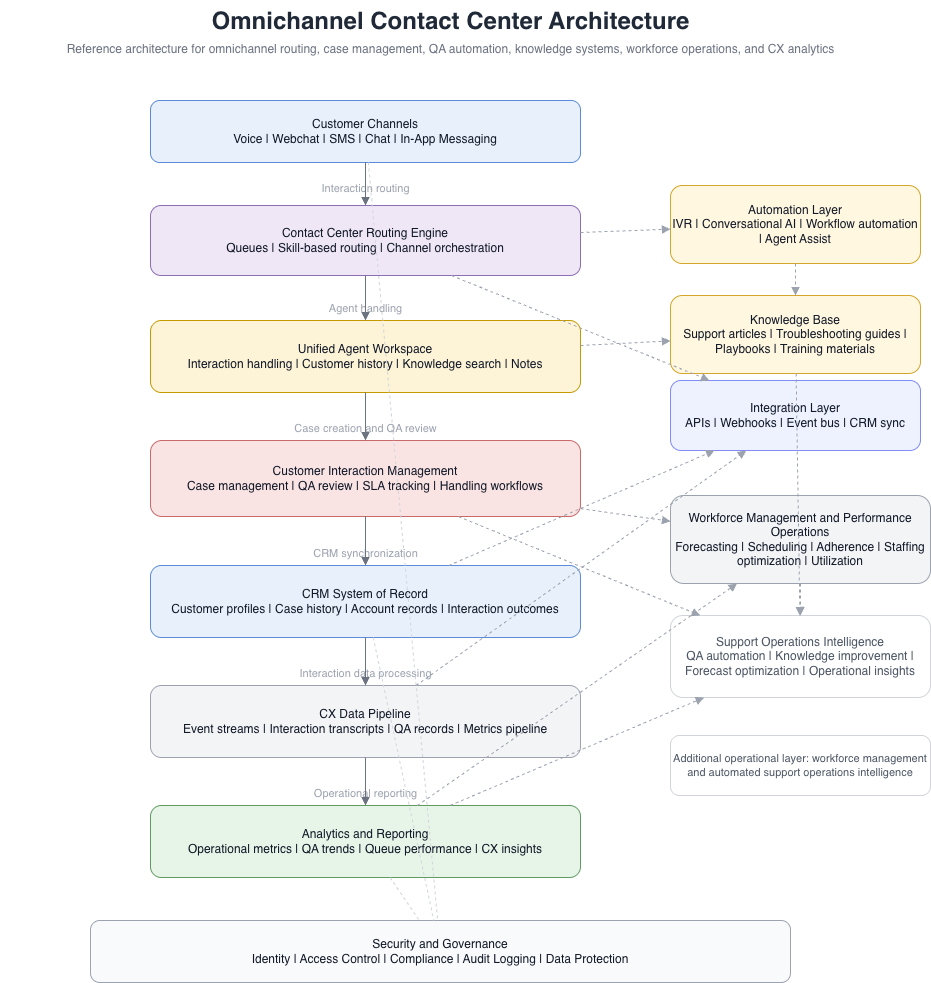

Architecture Diagram
Architecture Explanation
Customer interactions originate through multiple channels including voice calls, webchat, SMS, chat messaging platforms, and in-app messaging. All channels enter the same routing platform to maintain a consistent customer experience.
The contact center platform acts as the operational routing engine. It manages queue handling, skill based routing, interaction orchestration, transcripts, agent presence, and real time dashboards. Automation systems such as IVR, conversational AI, and workflow automation resolve routine requests before agent involvement where possible.
Agents work through a unified workspace that gives visibility into customer history, CRM data, transcripts, and knowledge base content. During support execution, case creation, SLA tracking, escalation workflows, and cross team coordination are handled through the interaction management layer.
Operational oversight systems such as QA and workforce management monitor performance, coaching opportunities, forecasting, scheduling, and utilization. Analytics systems then convert interaction data into operational insights that improve support workflows over time.
Cost Model
The source architecture estimates a monthly platform cost of approximately $8,000 per month, including the contact center platform, voice telephony, messaging infrastructure, QA and monitoring storage, and workforce management tooling.
- Contact center platform: approximately $4,000/month
- Voice telephony: approximately $2,000/month
- Messaging infrastructure: approximately $1,000/month
- QA and monitoring storage: approximately $500/month
- Workforce management tooling: approximately $500/month
Operational Impact
- Average handle time: 10 minutes → 7 minutes
- Agent utilization: 60% → 80%
- Customer wait time: 8 minutes → 3 minutes
- QA review coverage: 10% → 50%
- Case tracking consistency: Low → High
The source model estimates approximately 40,000 monthly interactions with an average cost per interaction of $4. At roughly 25% operational efficiency improvement, the architecture yields approximately $40,000 in estimated monthly operational savings.
Business Impact
- Reduced customer wait times
- Improved agent productivity and routing efficiency
- Consistent service handling across channels
- Stronger case management visibility
- Expanded QA monitoring and coaching coverage
- Better staffing optimization and forecasting
- Scalable support operations as the business grows
Architecture Decision Record
All customer interaction channels should enter a shared routing platform.
Fragmented channel systems create inconsistent support experiences and reduce operational visibility. A shared routing platform improves handling consistency and makes automation and reporting easier to manage.
- Consistent customer experience across channels
- Centralized operational reporting
- Improved routing efficiency
- Easier automation integration
